Sheetmetal Laser cutting explained

Updated: Aug 20, 2021

The mighty power beam called Laser !

Lasers are used for many purposes. One way they are used is for cutting plates. On mild steel, stainless steel and Aluminum plates. The laser cutting procedure is highly precise, yields excellent good quality, has a very small kerf width and little heat impact zone, and makes it possible to cut very intricate shapes and tiny holes.

How it works ?

The high power density results in quick heating, melting and partial or entire vaporising of the substance. When cutting mild steel, the warmth of the laser beam is enough to start a standard"oxy-fuel" burning procedure, and the laser cutting off gasoline is going to probably be pure oxygen, just like an oxy-fuel flashlight. When trimming stainless steel or Aluminum, then the laser beam only melts the substance, and high pressure nitrogen is utilized to blow the molten metal out of the kerf.

Many folks know that the term"LASER" is an acronym for Light Amplification by Stimulated Emission of Radiation. But how does light cut through a metal plate?

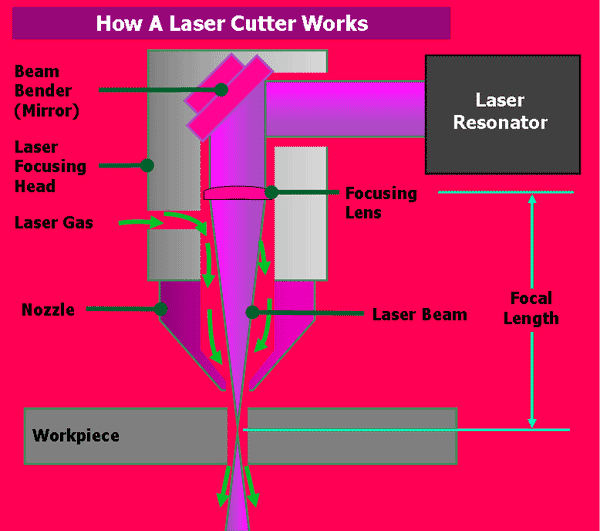

The laser beam is formed in to a column of very significant intensity lighting, of a single wavelength, or color. In the instance of a typical CO2 laser, that wavelength is at the Infra-Red part of the light spectrum, so it is invisible to the human eye. The beam is only about 3/4 of an inch in diameter as it moves from your laser resonator, which creates the ray, throughout the system's beam path. The concentrated laser beam extends through the bore of a nozzle before it hits the plate.

On a CNC laser cutter, the laser cutting head has been transferred over the metallic plate in the shape of the desired part, thus cutting on the part out of the plate. A capacitive height control system maintains an extremely precise distance between the close of the nozzle and the plate that's being cut. This distance is important, since it determines where the focal point is relative to the surface of the plate. Cut quality can be impacted by lifting or lowering the focal point from just above the surface of the plate, at the top, or just beneath the surface.

There are many, many different parameters that impact high-quality too, but when are controlled properly, laser cutting is a secure, trustworthy, and very accurate cutting procedure.

Focusing the laser beam may be accomplished by a distinctive lens, or by a curved mirror, and this occurs in the laser cutting head. The beam has to be precisely focused so that the shape of the focus spot and the density of their energy in that spot are perfectly consistent and round, and centered in the nozzle. By focusing on the massive beam down to one pinpoint, the warmth density in that place is extreme. Consider having a magnifying glass to focus the sun's rays onto a leaf, and how that can begin a fire. Now think about focusing 6 KWatts of energy into a single place, and you may imagine how hot that place will get!

Feel Free to pickup the phone to call us to find out what we can achieve in Lasercutting. We can cut up to 20mm thick in Mild steel and 16mm in Stainless Steel and 12mm in Aluminium.

Quality cut and First class service is what we got on offer.

Call us today or email ! +61 3 8595 6706
